Technische Daten
USB-I/O Specifications
Connector USB type B port
Codec 24 bit, High Resolution
Input Impedance 10 KOhms Transformer Balanced
Output Impedance 300 Ohms Transformer Balanced
Maximum Input Level Nom...
mehr lesen
USB-I/O Specifications
Connector USB type B port
Codec 24 bit, High Resolution
Input Impedance 10 KOhms Transformer Balanced
Output Impedance 300 Ohms Transformer Balanced
Maximum Input Level Nominal 0 dB
Maximum Output Level Nominal 0 dB
Input/Output Noise
USB - System dependent
ISO transformer - Enviroment sensitive
Frequency Response 20 - 20 KHz ± 0.5 dB
Power Operating current via USB Port 80mA

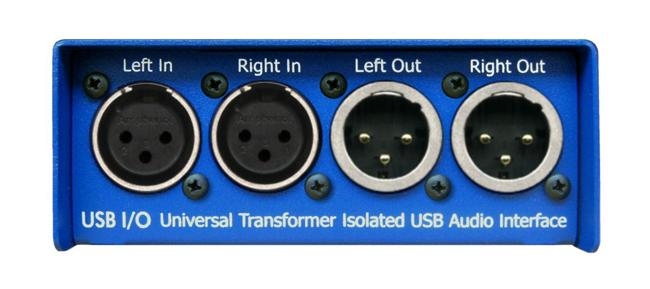

Input Connectors
2 x Female XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 via ground Lift switch
Output Connectors
2 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 via ground Lift switch
Construction
All-steel polyurethane coated chassis, fibreglass PCB, epoxy printing,
slip-resistant rubber base. Package includes a premium quality USB-A to USB-B cable
System Requirements
Windows PC running Windows XP, 7/8/10 , Mac running OS X or later
USB port
Audio software installed
98SE will need the Win 98SE CD Rom to install driver. However, in reality if you´re serious about music you´ll already be using a later operating system
