- Sound Generator
ZEN-Core
- Parts
5 parts (Play part: 4, Rhythm part: 1)
- Tones
Preset tone: 1,200 or greater
Preset Drum Kit: 70 or greater
Import tone: 256
- Scenes
150
- Effects
Part Multi-Effects: 1 system (for each part), 93 types
Part EQ: 1 system (for each part)
Reverb: 7 types
Chorus/Delay: 9 types
Scene MFX: 2 systems (Serial or Parallel selectable), 93 types
Master EQ / Comp
- Nominal Output Level
OUTPUT (L/PHONES, R/MONO): -10 dBu
- Maximum Output Level
OUTPUT (L/PHONES, R/MONO): +7 dBu
- Output Impedance
OUTPUT (L/PHONES, R/MONO): 44 ohms
- Recommended Load Impedance
OUTPUT (L/PHONES, R/MONO): 10 k ohms or greater (Phones: 44 ohms or greater)

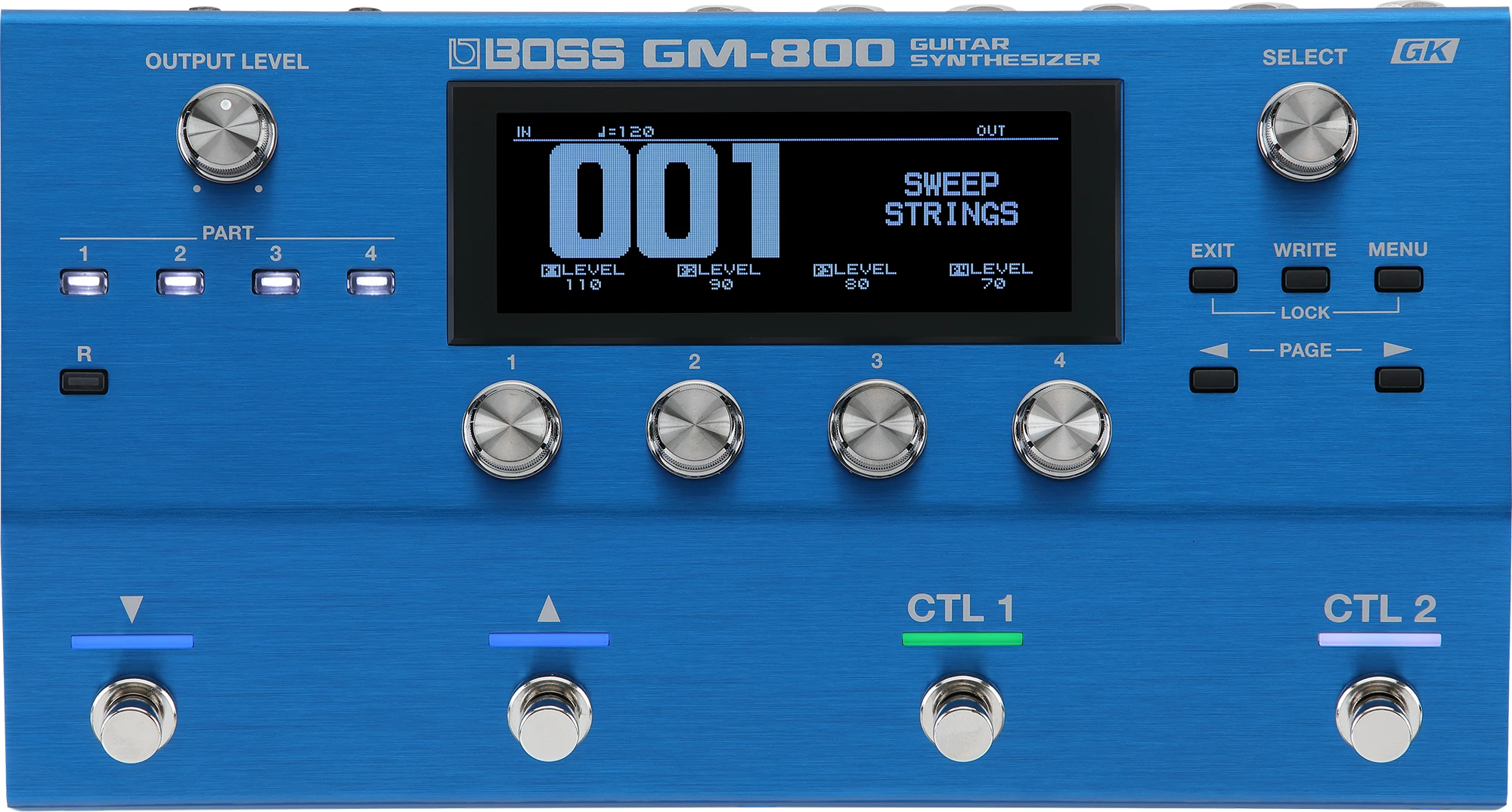

- Controls
SCENE DOWN switch, SCENE UP switch, CTL1--2 switches
PART1--4 buttons, PART R button, EXIT button, WRITE button, MENU button, PAGE buttons
1--4 knobs, SELECT knob, OUTPUT LEVEL knob

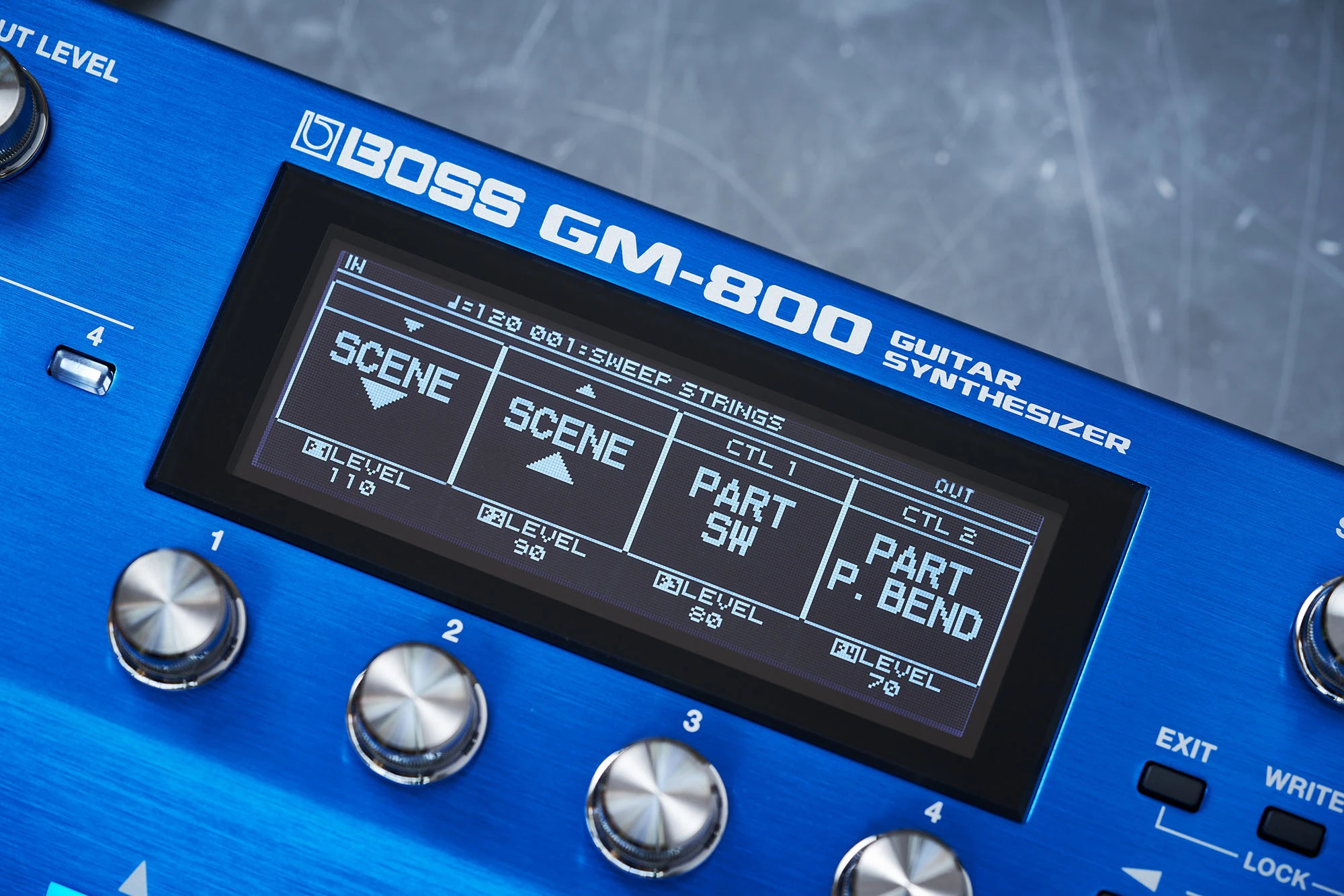

- Display
Graphic LCD 256 x 80 dots

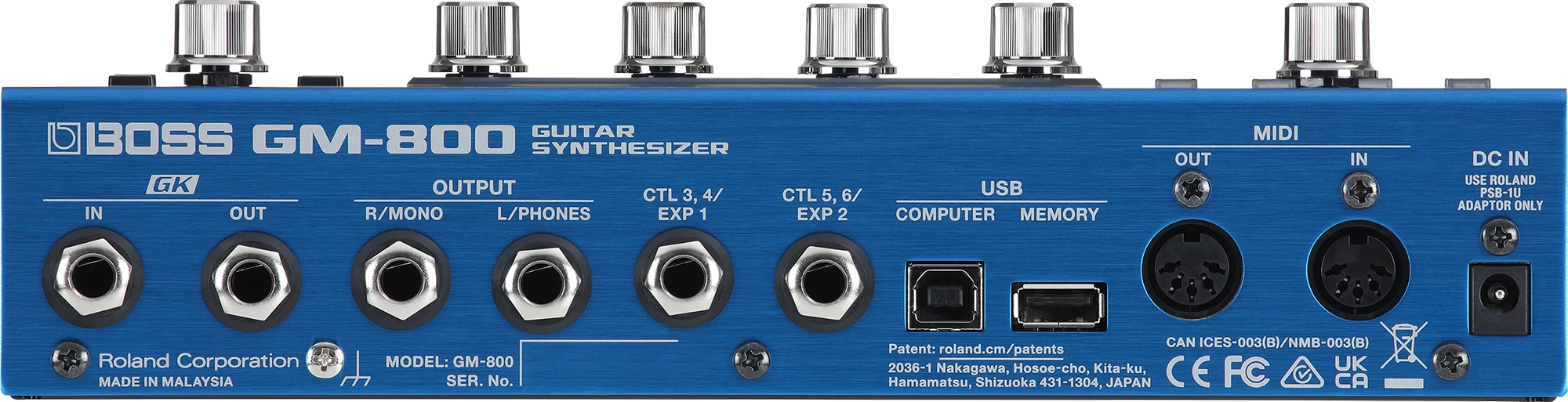

- Connectors

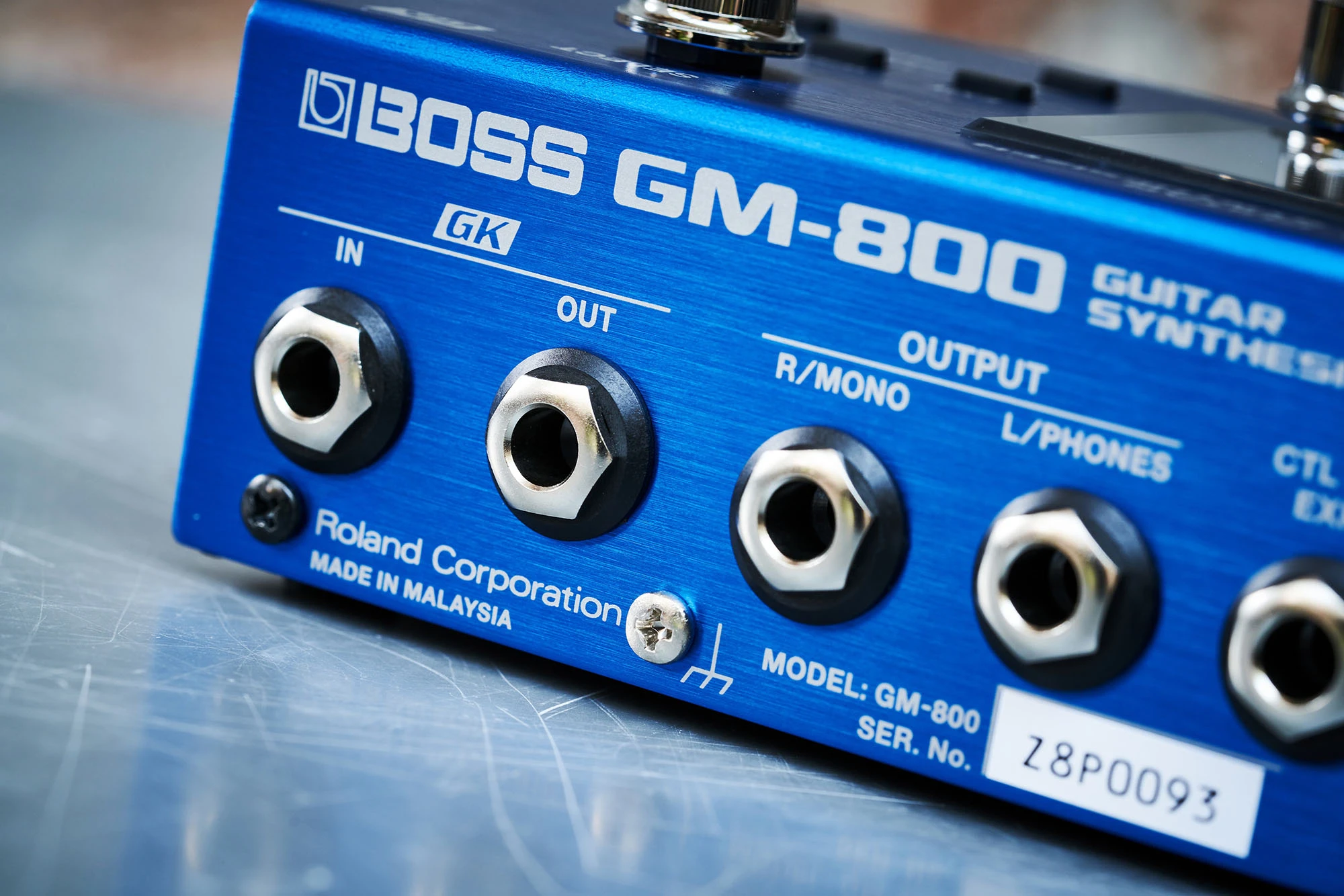

GK IN jack: 1/4-inch TRS phone type (for BGK cable only)
GK OUT jack: 1/4-inch TRS phone type (for BGK cable only)
OUTPUT (L/PHONES) jacks: 1/4-inch TRS phone type
OUTPUT (R/MONO) jacks: 1/4-inch phone type
CTL3, 4/EXP1 jack, CTL5, 6/EXP2 jack: 1/4-inch TRS phone type

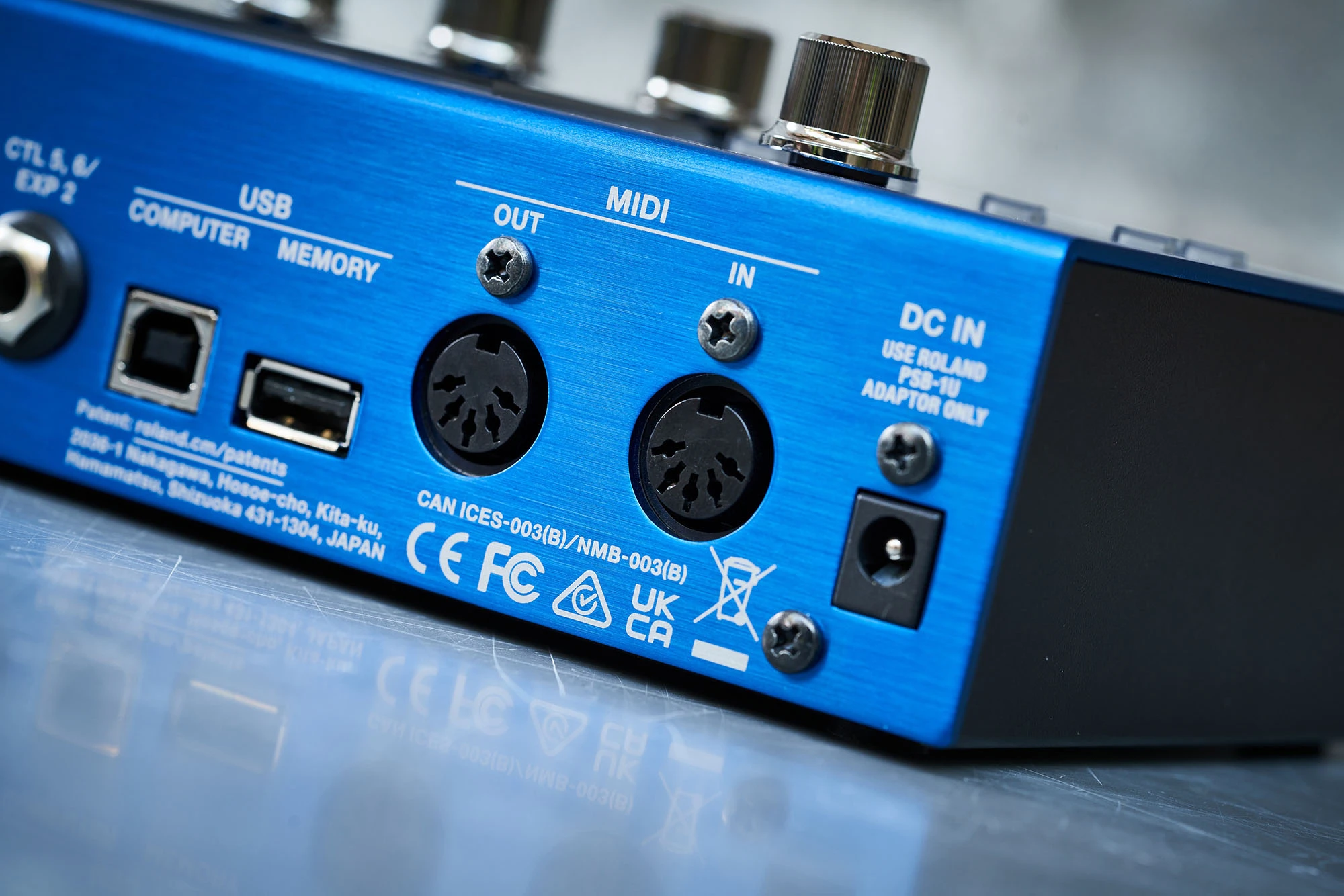

USB COMPUTER port: USB B type (supports High-Speed USB, USB Audio, and USB MIDI)
USB MEMORY port
MIDI connectors (IN, OUT)
DC IN jack
- External Memory
USB Flash drive (sold separately)
- Power Supply
AC adaptor
- Current Draw
840 mA
- Dimensions
246 (W) x134 (D) x 63 (H) mm (without rubber foot)
9-11/16 (W) x 5-9/32 (D) x 2-31/64 (H) inches (without rubber foot)
246 (W) x134 (D) x 65 (H) mm (including rubber foot)
9-11/16 (W) x 5-9/32 (D) x 2-9/16 (H) inches (including rubber foot)
- Weight (excluding AC adaptor)
1.2 kg
2 lbs 9 oz
- Accessories
AC adaptor (PSB-1U + AC Cord Set)
Quick Start
Leaflet "USING THE UNIT SAFELY"
Rubber foot x 4
- Options (sold separately)
Divided pickup: GK-5 (for guitar), GK-5B (for bass guitar)
Serial GK cable: BGK-15 (15 ft./4.5 m), BGK-30 (30 ft./9 m)
GK converter: GKC-DA, GKC-AD
Footswitch: FS-5U, FS-5L, FS-6, FS-7
Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5
AC adaptor (PSB-1U) (*1)
*1 When purchasing an AC adaptor, be sure to specify the adaptor (from the list that follows) that is designed for the region in which it will be used, and the voltage supplied there.
(PSB-120/PSB-120TW/PSB-230EU/PSB-230UK/PSB-240A)
* 0 dBu = 0.775 Vrms
