 88 Tasten mit Hammermechanik (Fatar TP-400W Tastatur), Ivory & Ebony Tasten mit Aftertouch
|
| 180 Sounds plus User Sounds (Zum Download unter dexibell.com)
|
| 100 Orgel Presets
|
| Dual/Layer/Split Modus
|
| Begleitautomatik
|
| unlimitierte Polyphonie mit 320 Oszillatoren
|
| 28 x 64 Pixel LC-Display
|
| Audio-Recording unterstützt .wav, 48kHz, 32-bit, auf USB Medium
|
| Effekte |
Rotary, Overdrive, Vibrato/Chorus für Orgel |
| 12 unabhängige DSPs
|
| Bluetooth Audio und Midi (BLE 4.2)
|
| 9 Motorfader
|
| Pitch-Bend- und Modulations-Rad
|
| Stereo Output Main |
XLR L/R + R |
| Main/Sub-Out
|
| 4 Fußpedal Anschlüsse
|
| Midi (In/Out/Thru), USB to host (Midi & Audio)
|
| USB to Device
|
| Aux In |
3,5 mm Stereo Miniklinke |
| Kopfhörerausgang |
6,3 mm Stereo Klinke |
| Abmessungen (B x T x H) |
1270 x 354 x 130 mm |
| Gewicht |
20 kg |
| inkl. Sustain Pedal, Notenhalter und Netzteil |
Technische Daten
Technical specifications
Keyboard: TP-400 W (Hybrid: Wood & Plastic): 88 Keys - Weighted, Hammer action,Triple contact Ivory & Ebony feels After Touch
Tone Generator: Advanced T2L: Sampling and Model...
mehr lesen
Technical specifications
Keyboard: TP-400 W (Hybrid: Wood & Plastic): 88 Keys - Weighted, Hammer action,Triple contact Ivory & Ebony feels After Touch
Tone Generator: Advanced T2L: Sampling and Modelling Technology
Sampling: XXL wave size, up to 15 seconds on lower piano notes
Sound Wave Format: 24 bit linear - 48 KHz (Internal processing and DSP at 32 bit floating)
Digital Analog Convertion (DAC): 24 bit linear - 48 KHz, Dynamic Range, S/N:106dB
Maximum Polyphony: Unlimited with 320 Oscillator
Organ Type: TW1, TW2, FARF, VX, PIPE + User1, User2 downloadable from website
Sounds: over 100 Organ Preset + 180 Sounds + User downloadable from website
Draw-Faders: 9 MOTORIZED for Tone Wheels/Mixer/EQ/Master Keyboard Controllers
Memory: Internal: 81 Unlimited loadable from USB Memory
Wave Memory: 3.2 GB fully changable by the user with DEXIBELL and Sound Font format
Keyboard Mode: 4 Parts (MAIN, LOWER, COUPLED, PEDAL) + 4 MIDI zones
Touch Sensitivity: 7 Types + Fixed
Reverb: 24 Types
Effects: Rotary, Overdrive, Vibrato/Chorus for Organ + 12 Independent DSP x 17 types (3 x Main, 3 x Coupled, 3 x Lower, 3 x Pedal) using "seamless changes" technology at effect recall
Master Equalizer: 3-band Digital Equalizer
Chord Enhancer: YES
Controllers: Draw-faders (Organ TW, S1~S9 Reverb and Volume) FX Encoder x 6 with led meters Data Entry/Song Level Encoder x 1 with led meters Master Volume Knob Wheel 1 & Wheel 2
Players: .wav, .aiff, .mp3, in all format, frequency and bit rate
Recorder: .wav (48 kHz, 32-bit floating) on USB Memory
Master Tuning: 415,4 Hz to 466,1 Hz (adjustable increments of 0,1 Hz)+ 2 Preset (440 Hz, 442 Hz)
Temperament: 9 Types
User Temperament: YES: 3 User
Rhythm Patterns: X MURE APP for i-Phone and i-Pad (FREE) with multitracks audio patterns

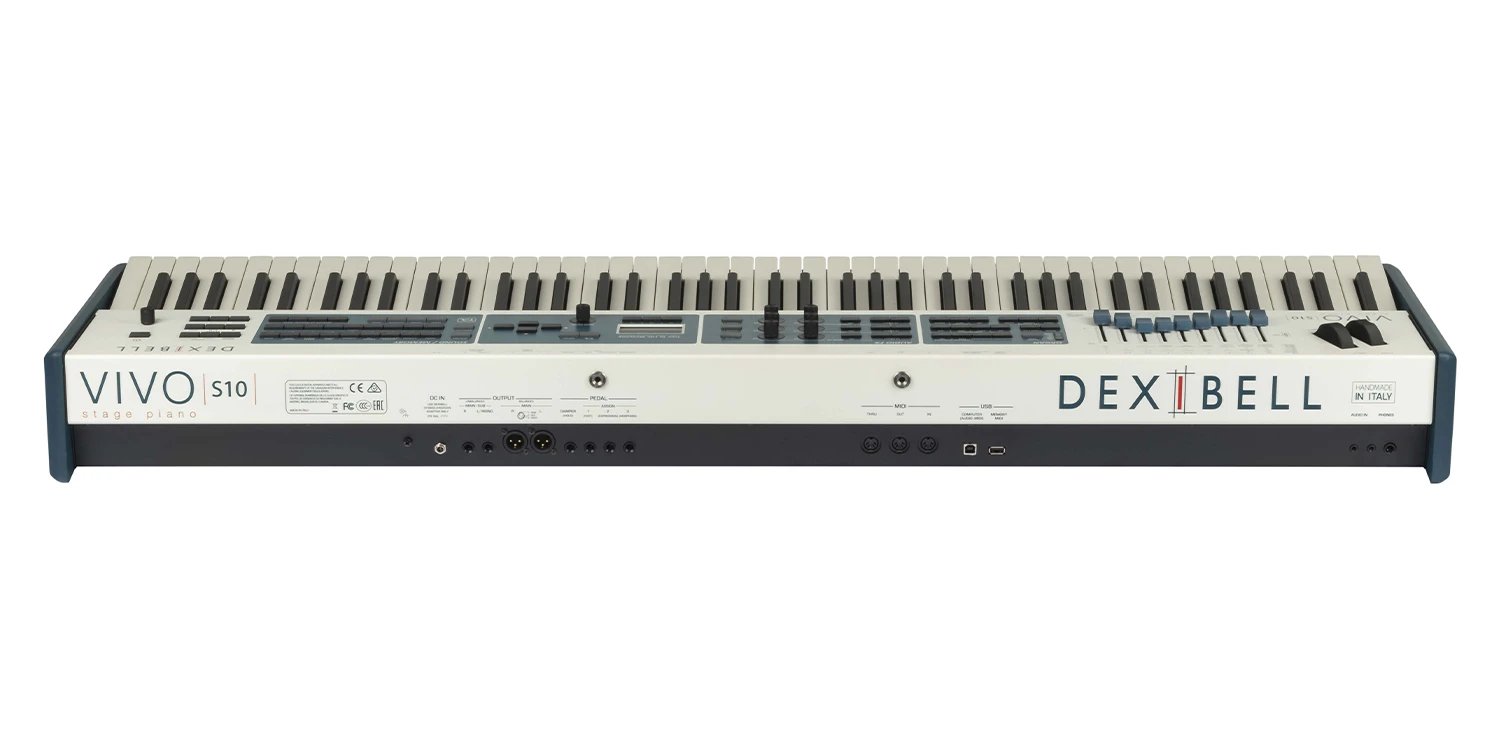

Connectors: OUTPUT: MAIN Balanced: XLR (L / R) - MAIN/SUB Unbalanced
OUTPUT jacks (L/MONO, R) 1/4-inch phone type
FOOT 1: Progressive Damper Action Pedal with sympathetic resonance simulation
FOOT 2: Function assignable
FOOT 3: Expression Pedal / Function assignable
FOOT 4: Morphing Pedal / Function assignable
MIDI: IN, OUT, THRU
USB: TO HOST (MIDI & DIGITAL AUDIO IN/OUT), TO DEVICE (MEMORY & MIDI)
AUX IN: 1 jack (stereo mini-jack)
Bluetooth
Streaming Audio Input, MIDI BLE 4.2
Display: Graphic LCD 128 x 64 dots Organic LED, high contrast type
Power Consumption: STAND BY: < 0,2 W MAXIMUM: 18 W "ErP" LEVEL VI for Echo efficiency on stand-by consumption
Dimensions: Width 1270 mm - 50" Depth 354 mm - 13,9" Height 130 mm - 5,11"
Weight: 20 Kg - 44,09 lb
Accessories: Damper Pedal and Music Stand included
