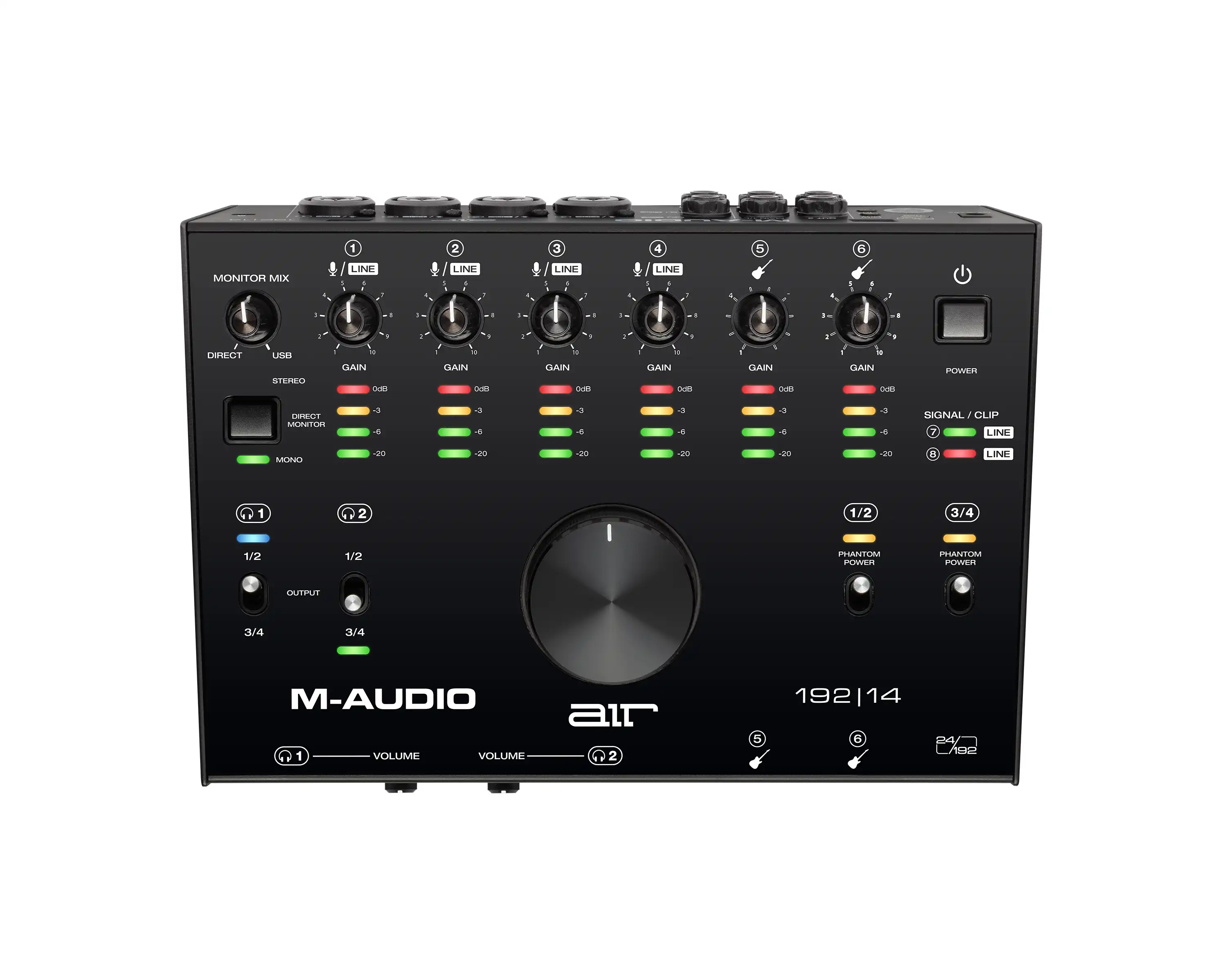

 USB-C Audiointerface mit 24-bit/192kHz Wandler für professionelles recording and monitoring
|
| Hi-Speed USB mit round-trip latency von 2.59ms (abhängig von den Buffer-Einstellungen und Hardware des Computers)
|
| Transparent Crystal preamps und ultra-pristine A/D Wandler
|
| VU LED meters
|
| (4) XLR+¼" TRS combo inputs, (2) ¼” instrument inputs and (2) ¼” line inputs
|
| MIDI input/output
|
| Stereo ¼” with direct mono/stereo switch; (2) ¼” assignable auxiliary outs
|
| (2) ¼” headphone outputs with independent source and level controls
|
| Robustes Metal Chassis
|
| Gosser, zentraler Control Knob für Lautstärkenanpassung
|
| Lieferumfang |
AIR 192|14, USB-C-to-USB-C Cable, USB-C-to-USB-A Cable, (2) 1/8" (3.5 mm) to MIDI Adapters, Software Download Cards, User Guide, Safety and Warranty Manual |
Technische Daten
Specifications
Minimum System Requirements
Standard USB 2.0 or USB-C Port
Windows: 7 (32 or 64 bit)
OSX: 10.8
Mic Inputs 1-4 (balanced XLR)
FREQUENCY RESPONSE 20 Hz – 20 kHz (+/-0.2 dB)
DYNAMIC RANG...
mehr lesen
Specifications
Minimum System Requirements
Standard USB 2.0 or USB-C Port
Windows: 7 (32 or 64 bit)
OSX: 10.8
Mic Inputs 1-4 (balanced XLR)
FREQUENCY RESPONSE 20 Hz – 20 kHz (+/-0.2 dB)
DYNAMIC RANGE 113 dB (A-weighted)
THD+N 0.003%
PREAMP EIN -137 dBu (40 Ω source, A-weighted)
-129 dBu (150 Ω source, unweighted)
MAX INPUT LEVEL +14 dBu
GAIN RANGE 62 dB
Line Inputs 1-4 (balanced 1/4" [6.35 mm] TRS)
FREQUENCY RESPONSE 20 Hz – 20 kHz (+/-0.1 dB)
DYNAMIC RANGE 113 dB (A-weighted)
THD+N 0.001% (1 kHz, +4 dBu, -1 dBFS)
MAX INPUT LEVEL +30 dBu
GAIN RANGE 61 dB
Inst Inputs 5-6 (unbalanced 1/4" [6.35 mm] TS)
FREQUENCY RESPONSE 20 Hz – 20 kHz (+/-0.1 dB)
DYNAMIC RANGE 110 dB (A-weighted)
THD+N 0.001% (1 kHz, +4 dBu, -1 dBFS))
MAX INPUT LEVEL +16 dBu
INPUT IMPEDANCE ~1 MΩ
GAIN RANGE 59 dB
Fixed Line Inputs 7–8 (balanced 1/4" TRS)
DYNAMIC RANGE 113 dB (A-weighted)
THD+N 0.001% (1 kHz, +4 dBu, -1 dBFS)
FREQUENCY RESPONSE 20 Hz – 20 kHz (+/-0.1 dB)
MAX INPUT LEVEL +17 dBu
Line Outputs 1–2 (balanced 1/4" TRS)
DYNAMIC RANGE 112 dB (A-weighted)
THD+N 0.002% (1 kHz, -1 dBFS)
FREQUENCY RESPONSE 20 Hz – 20 kHz (+/-0.2 dB)
MAXIMUM OUTPUT LEVEL +17 dBu
Fixed Line Outputs 3–4 (balanced 1/4" TRS)
DYNAMIC RANGE 113 dB (A-weighted)
THD+N 0.002% (1 kHz, -1 dBFS)
FREQUENCY RESPONSE 20 Hz – 20 kHz (+/-0.2 dB)
MAXIMUM OUTPUT LEVEL +17 dBu
Headphone Outputs (stereo 1/4")
DYNAMIC RANGE 111 dB (A-weighted, 32 Ω load)
THD+N 0.002% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω load)
FREQUENCY RESPONSE 20 Hz – 20 kHz (+/-0.2 dB)
MAXIMUM POWER DELIVERED 160mW (< 1% THD, 32 Ω load)
MAXIMUM OUTPUT LEVEL +15 dBu (unloaded)
IMPEDANCE RANGE 32 Ω – 600 Ω
General
OTHER CONNECTORS (1) 1/8” (3.5 mm) MIDI input
(1) 1/8” (3.5 mm) MIDI output
(1) USB Type-C port
(1) Power adapter input
POWER ADAPTER 12 VAC, 2 A, center-positive (included)
DIMENSIONS (WIDTH X DEPTH X HEIGHT) 10.2" x 7.3" x 3.6" (25.9 x 18.6 x 9.1 cm)
WEIGHT 3.9 lbs. 1.8 kg
