Technische Daten
Frequency Response
10Hz to 40kHz +/- 0.5dB re 1kHz @ 96kHz sample rate
THD + Noise
0.005% max (@1kHz, 22-22kHz BW, gain=20dB, -10dBu in)
ADC
32 bit precision. 120dB dynamic range min (A-...
mehr lesen
Frequency Response
10Hz to 40kHz +/- 0.5dB re 1kHz @ 96kHz sample rate
THD + Noise
0.005% max (@1kHz, 22-22kHz BW, gain=20dB, -10dBu in)
ADC
32 bit precision. 120dB dynamic range min (A-weighted, gain=10dB, fader=0dB)
Equivalent Input Noise
-130dBV (-128dBu) max (A-weighting, gain=76dB, 150 ohm source impedance)

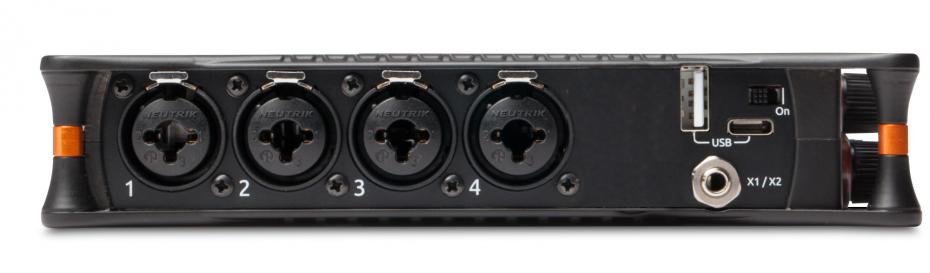

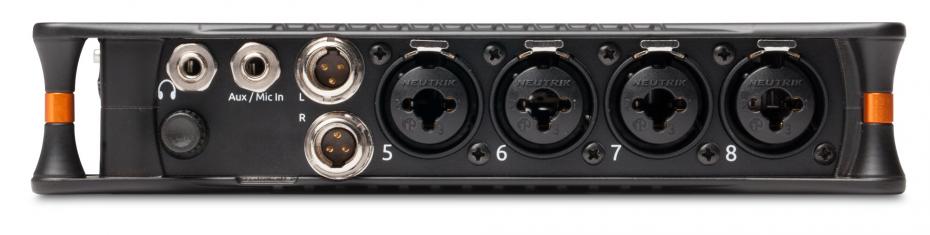

Inputs
Mic: XLR active-balanced. 4k input Z
Line: XLR active-balanced. 4k input Z
Aux/Mic in: 3.5mm TRS, 2-channel unbalanced. 100k input Z
Line: ¼-inch TRS active-balanced. 4k input Z
USB Audio: 4 channels
All inputs fully RF-filtered and overload protected.
Gain
Mic input: +6dB to +76dB
Line input: -20dB to +30dB
Fader: -inf to +20dB
Headphone: -inf to +20dB
Total, Mic-to-recording (max): +96dB
Aux In (Mic): Gain = +10dB to +40dB
Aux In (Line): Gain = -10dB to +20dB
Total Aux Gain including Fader (Mic-to-recording): +60dB
Maximum Input Level
Mic XLR: +14dBu (limiters on or off)
Line XLR/¼-inch: +28dBu (limiters on or off)
Aux In (Mic): -10dBu
Aux In (Line): +10dBu
Low Cut Filters
40Hz to 160Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital.
Microphone Powering
Mic XLRs: 48V via 6.8k resistors, 10mA each
Mic 3.5mm: 3V @ 3k source Z
Limiters
Limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital.
DAC feeding Stereo Out, Headphone Out
32 bit precision. 115dB dynamic range (A-weighted)
L/R Out
TA3 2-channel balanced, 1.1K max output impedance, +10.8dBu max output level
X1/X2 Out
3.5mm TRS stereo unbalanced, 500 ohm output impedance, +7.8dBu max output level
Headphones Out
3.5mm TRS stereo unbalanced, for use with any impedance headphones
USB
Audio Interface (USB-C): 12-in/4-out. 44.1 to 96 kHz. 16/24-bit. Class-compliant USB 2.0 high speed or ASIO® driver (supplied via download)
Mass Storage (USB-C): USB 2.0 high speed
Keyboard (USB-A): Text entry and control
Thumbdrive (USB-A): Manual or auto-copy to drive
Maximum Record Tracks
12 Tracks
Sampling Frequency
44.1 kHz
48 kHz
96 kHz
Bit Depth
24

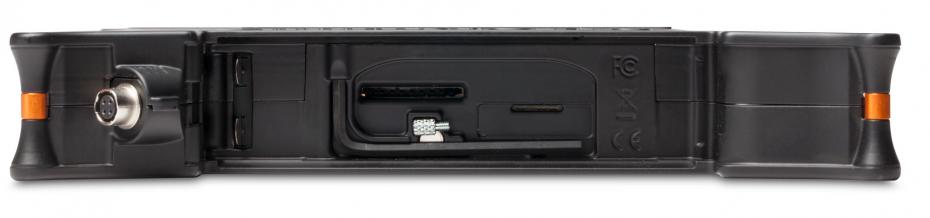

Recording Storage
Type: SD, SDXC, SDHC Card, & USB thumbdrive (copy only)
Max Storage Size: 512 GB (SDXC)
Card format: FAT32 (32GB or less) or exFAT (>32GB)
File Types
Monophonic WAV
AAC (render)
Stereo WAV (render)
Effects
Reverb Types: Plate, Room, Hall (48 kHz max sampling rate)
Vocal Air (0-100%)

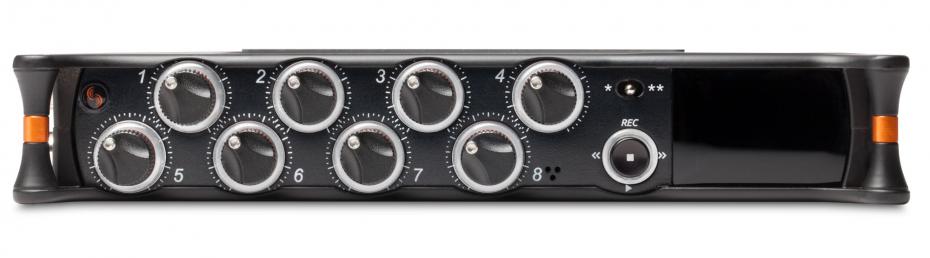

Touch Screen
320x256. 1.6-inch, color, sunlight-viewable IPS LCD
Power
AA Batteries: 8x AA sled (included). NiMH recommended
L-Mount: Optional sled for 2x (hot-swappable) Li-ion batteries
AC Adapter: XL-WPH3 (included): Universal, 45 W in-line AC-to-DC power supply Hirose 4-pin DC plug, with detachable IEC power cord. 100-240, 50/60Hz
Environmental
Operating: -20°C to 60°C, 0 to 90% relative humidity. (non-condensing)
Storage: -40°C to 85°C
Dimensions and Weight
Dimensions: 36 mm x 206 mm x 175 mm (H x W x D). 1.375” x 8.125” x 6.875”
Weight: .91 kg. 32.1 oz. (unpackaged, without batteries)
