Size/Weight
Width
[For models with polished finish]
1,426 mm
[1,429 mm]
Height
[For models with polished finish]
With music rest closed
868 mm
[872 mm]
With music rest raised
1,027 mm
[1,028 mm]
Depth
[For models with polished finish]
612 mm
[612 mm]
Weight
[For models with polished finish]
82 kg
[85 kg]
Control Interface
Keyboard
Number of Keys: 88
Type: GrandTouch Keyboard: wooden keys (white only), synthetic ebony and ivory key tops, escapement
88-key Linear Graded Hammers: Yes
Counter Weight: Yes
Touch Response: Hard2/Hard1/Medium/Soft1/Soft2
Pedal
Number of Pedals: 3 (Damper (with Half-pedal function), Sostenuto, Soft)
GrandTouch Pedals: Yes ((with GP Response Damper))
Assignable Functions: Sustain, Sostenuto, Soft, Glide, Song Play/Pause, Style Start/Stop, Volume, etc.
Display
Type: TFT Color LCD (Touch Screen)
Size: 800 × 480 dots; 9.0 inch
Score/Lyrics/Text Display Function: Yes
Language : English, German, French, Spanish, Italian, Japanese
Panel Language English
Cabinet
Key Cover Style
Folding
Music Rest
Yes (with music braces)
Voices
Tone Generation
Piano Sound: Yamaha CFX, Bösendorfer Imperial
Binaural Sampling: Yes (“CFX Concert Grand” and “Bösendorfer Grand” Voice only)
Piano Effects
VRM: Yes
Grand Expression Modeling: Yes
Key-off Samples: Yes
Smooth Release: Yes
Polyphony (max.)
256
Preset
Number of Voices: 1,605 Voices + 58 Drum/SFX Kits + 480 XG Voices
Number of VRM Voices: 17
Number of Super Articulation Voices: S.Art2: 36, S.Art: 301
Custom
Voice Edit: Yes
Compatibility
XG, GS (for Song playback), GM, GM2
Other Features
Mono/Poly: Yes
Effects
Types
Reverb: 65 Preset + 30 User
Chorus: 106 Preset + 30 User
Insertion Effect: 322 Preset + 30 User
Variation Effect: 322 Preset + 30 User
Master Compressor: 5 Preset + 30 User
Master EQ: 5 Preset + 30 User
Part EQ: 27 Parts
Vocal Harmony: 54 Preset + 60 User
Intelligent Acoustic Control (IAC): Yes
Stereophonic Optimizer: Yes
Functions
Dual (Layer): Yes
Split: Yes
Styles
Preset
Number of Styles: 675
Fingering Types: Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Style Control: INTRO × 3, MAIN VARIATION × 4, FILL × 4, BREAK, ENDING × 3
Custom
Style Creator: Yes
Other Features
One Touch Setting (OTS): 4 for each Style
Chord Looper: Yes
Compatibility
Style File Format (SFF), Style File Format GE (SFF GE)
Songs (MIDI)
Preset
Number of Preset Songs: 50 Classics + 303 Lesson Songs + 60 Popular
Recording
Number of Tracks: 16
Data Capacity approx. 3 MB/Song
Song Creator: Yes
Format
Playback: SMF (Format 0, Format 1), XF
Recording: SMF (Format 0)
Songs (Audio)
Recording Time (max.): 80 minutes/Song
Format
Playback WAV (44.1kHz, 16bit, stereo), MP3 (MPEG-1 Audio Layer-3)
Recording WAV (44.1kHz, 16bit, stereo), MP3 (MPEG-1 Audio Layer-3)
Functions: Time Stretch, Pitch Shift, Vocal Cancel: Yes
Functions
Registration Memory
Number of Buttons: 8
Control: Registration Sequence, Freeze
Playlist
Number of Records (max.): 2,500
Lesson/Guide
Follow Lights, Any Key, Karao-Key, Your Tempo (with guide lamps)
Overall Controls
Metronome: Yes
Tempo Range: 5 – 500, Tap Tempo
Transpose: −12 – 0 – +12
Tuning: 414.8 – 440 – 466.8 Hz (approx. 0.2 Hz increments)
Scale Type: 9 Types
Bluetooth Audio
Bluetooth version: 4.2
Supported profile: A2DP
Compatible codec: SBC
Wireless output: Bluetooth class 2
Maximum communication distance: Approx. 10 m
Radio Frequency: 2,401 – 2,481 MHz
Maximum output power (EIRP): 4 dBm
Type of modulation: FHSS
Miscellaneous
Piano Room: Yes
Display output to an external monitor: Yes (by using a commercially available USB display adaptor*)
* For a list of compatible devices, access the “Yamaha Downloads” website.
Brightness Adjustment: Yes (display/button lamps)
USB audio interface: 44.1 kHz, 24 bit, stereo
Storage and Connectivity
Storage
Internal Memory: approx. 2 GB
External Drives: USB flash drive
Connectivity
Headphones: Standard stereo phone jack (× 2)
Microphone: Mic/Line in (standard mono phone jack), Input volume
MIDI: IN, OUT, THRU
AUX IN: Stereo mini jack
AUX OUT: L/L+R, R
AUX PEDAL: Yes
USB TO DEVICE: Yes (× 2)
USB TO HOST: Yes
Sound System
Amplifiers
(40W + 30W + 20W) × 2 + 80W
Speakers
(16 cm + 5 cm + 2.5 cm (dome)) × 2 + 20 cm, Spruce Cone Speaker, Twisted Flare Port
Power Supply
Auto Power Off: Yes
Included Accessories
Owner’s Manual, Music Book, Online Member Product Registration, Power cord, Bench
Separately Sold Accessories

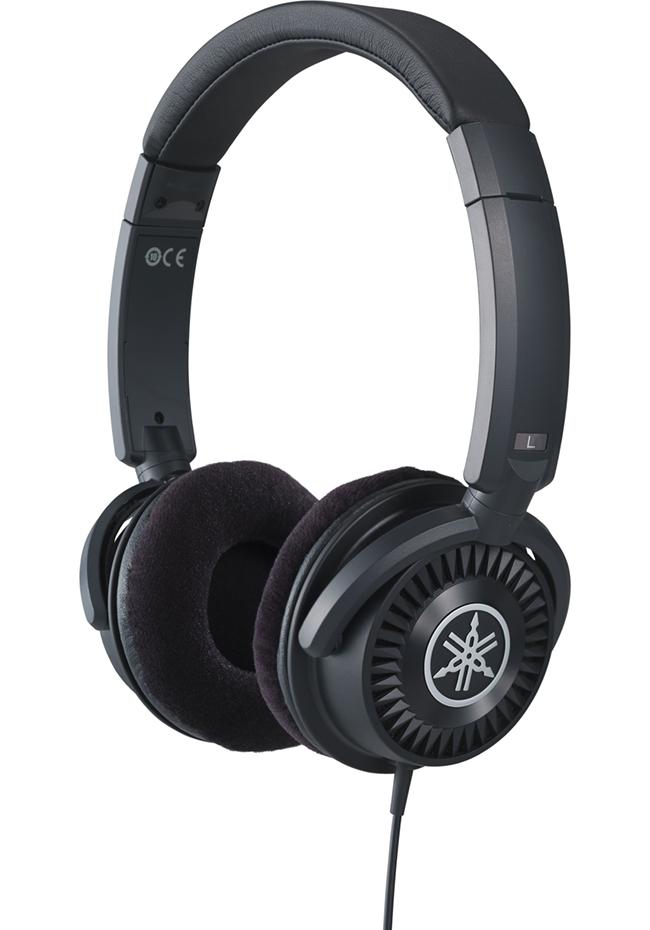

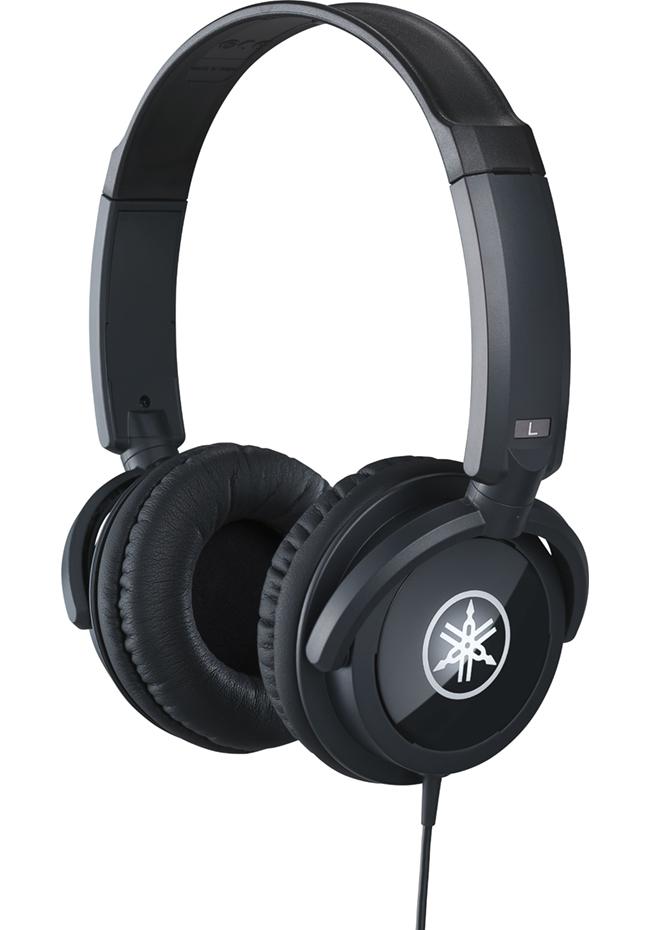

Headphones (HPH-150/HPH-100/HPH-50),
Footswitches (FC4A/FC5),
Foot controller (FC7),

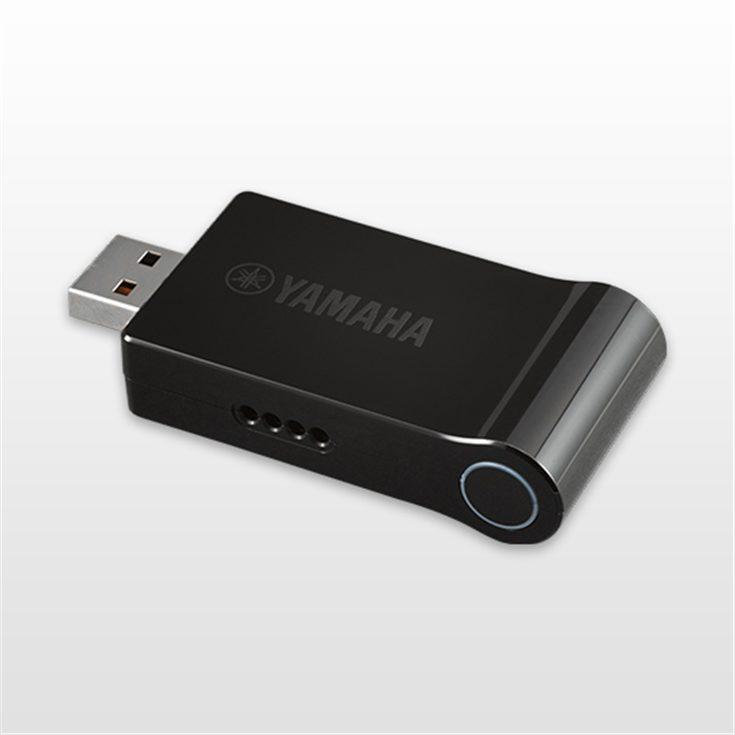

USB wireless LAN adaptor (UD-WL01)
